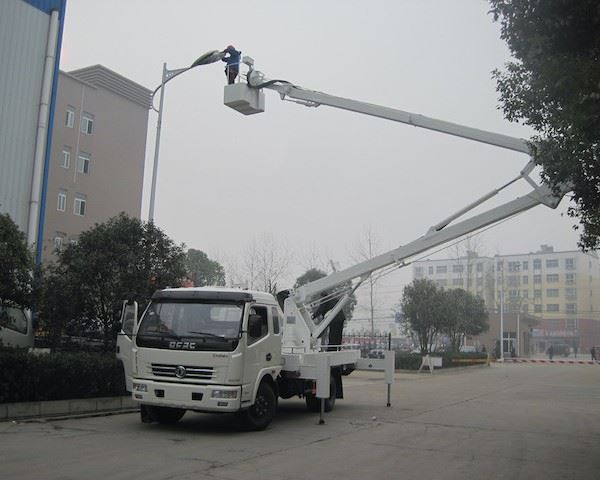

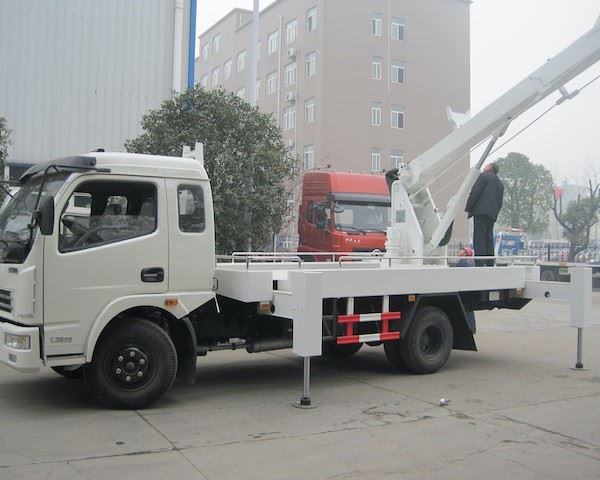

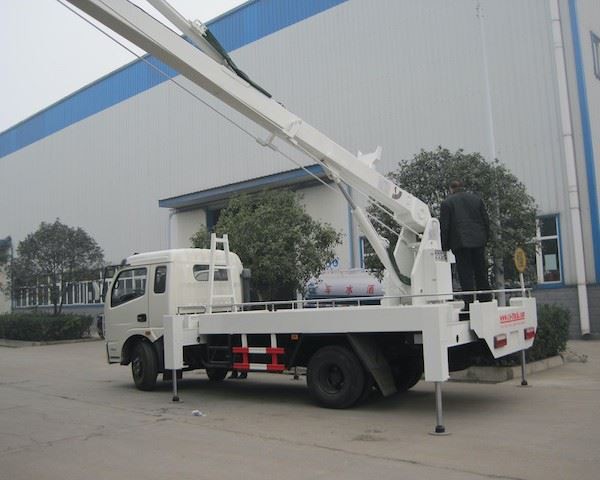

Aerial Lift Truck With Articulated Boom

DONGFENG 4×2 Cab Truck
Cummins140hp Engine
Lifting Height 16m
Max. Outreach 9.6m
±360° continuous Rotator
Rear Mounted Articulated Boom

Germany imported Hydraulic control valves.
Electro-hydraulic proportional control system.
Continuous speed regulation.
Superior operational performance.
Two Control Levers at the Turntable and Basket.
Engine Start/ Stop from Basket.
Holding Valves in each cylinder.
Pressure Relief Valve.
Built-in combined mechanism leveling ensures bucket safety.
Upper Boom Tie Down.
Interlocking leg protection ensures the safety of operation.
Out-trigger not extended, lock boom rotation only boom rise, ensuring safety and increasing efficiency.
Manual emergent pump.
Electronic timer sits to accumulate operating time for timely maintenance.

Working Height			16 m
Max. Side Reach			8.9 m
Basket Capacity			200 kg
Boom Rotation			±360° continuous
Side Reach at Max. Working Height			2.7 m
Working Height at Max. Side Reach			9.6 m
Lower Boom Lifting Capacity			2000 kg
Upper boom travel			9.3 m
Overall Size			7660×2000×2920 mm
Chassis Recommend			HOWO 4×2
Chassis Engine			CY4102-C3C
Engine Power			120hp
Cabin Passenger			3
