BRIEF

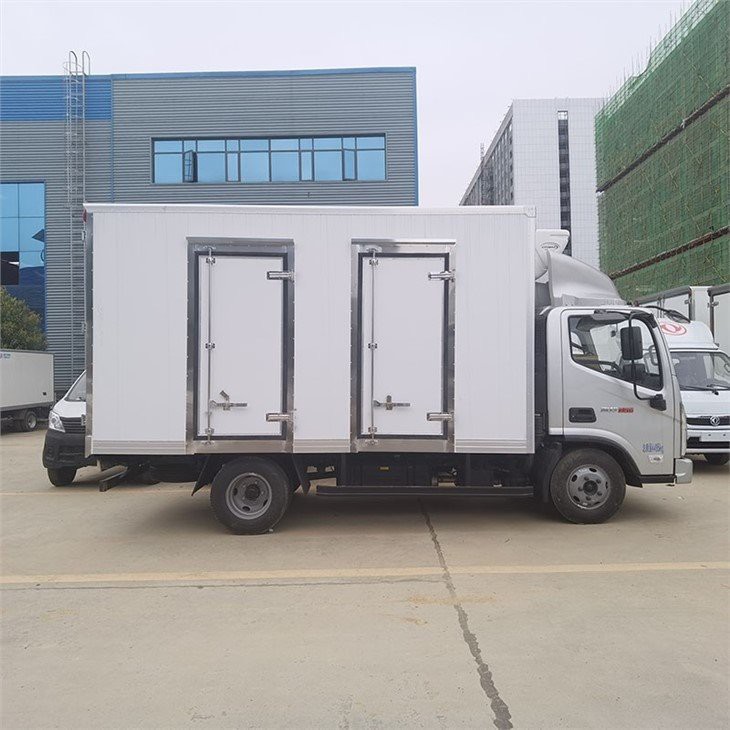

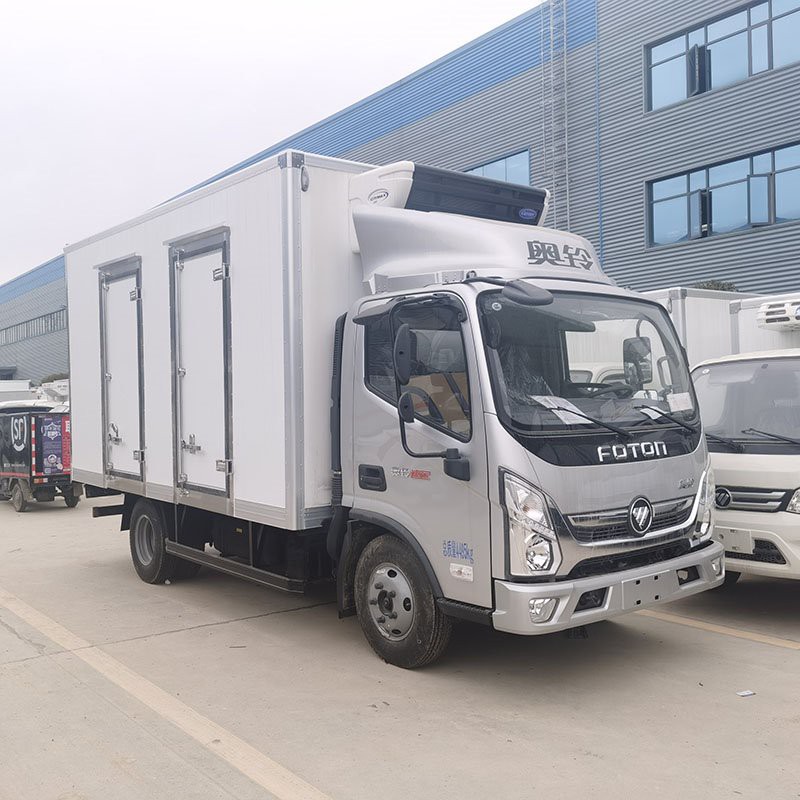

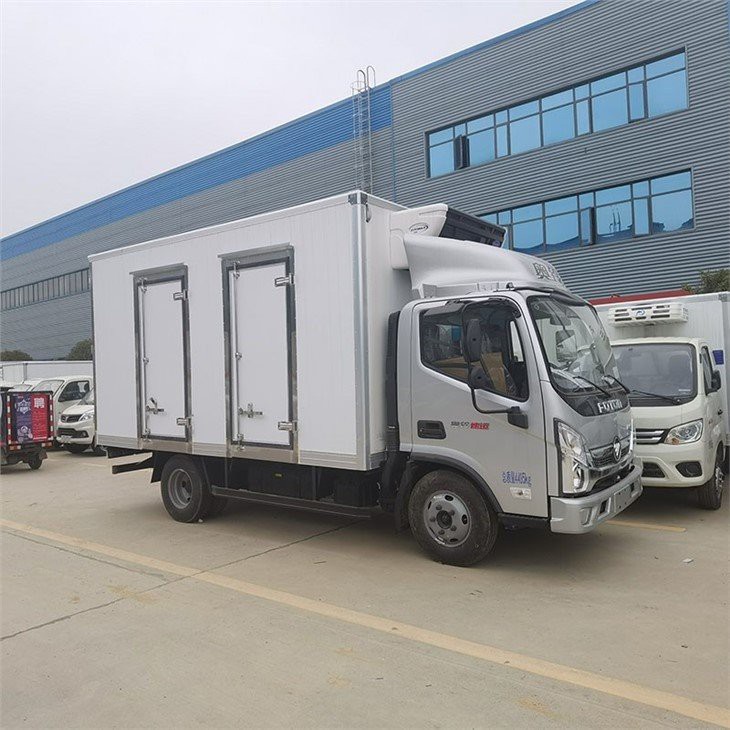

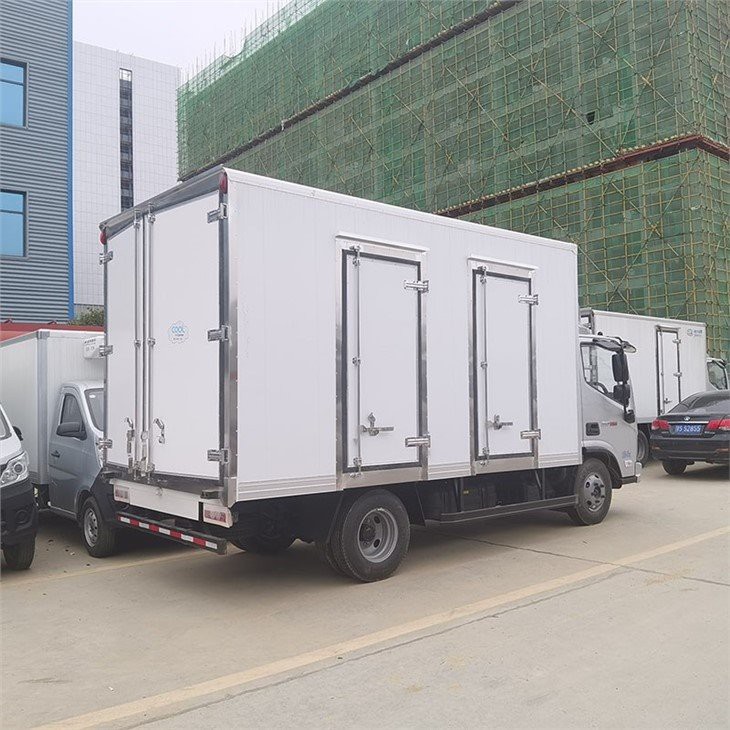

Model AUMARK-E433
FOTON 110hp Engine
Truck Size 5960×1940×2250 mm
Wheelbase 3360 mm
EURO IV Emission norm
 |
 |
 |
 |
Description
The special performance
Corrosion protection
The cargo box shall meet the salt spray test for more than 504 hours (including connecting bolts, welding points and anti-corrosion of paint surface)
In the rain
The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test.
airtight
Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h
Heat insulation
The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5
