Model No.: CSCWT025.
Water Tank Volume: 25,000L.
Overall Dimensions(LxWxH): 10,160×2,500×3,390mm.
Chassis Brand: HOWO.
Drive Type: 6×4.
Engine Make/Model: WEICHAI/WP10.380E22.
Engine Power: 380HP.
Emission Standard: Euro 2.
Payload: 25,000kg.
Water Tank Material: SS304.
Pump Make: 80QZ-40/42.
Flow rate: 40m³/h.
 |
 |
Description
BRIEF

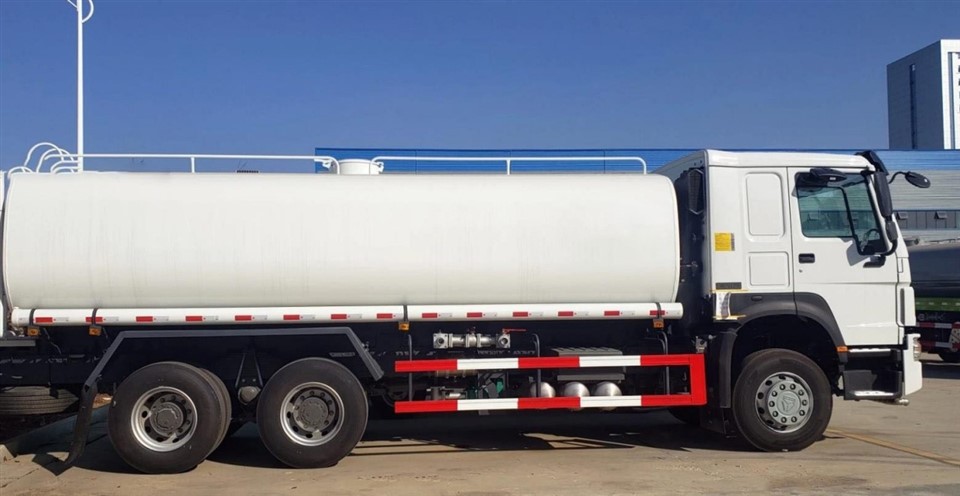

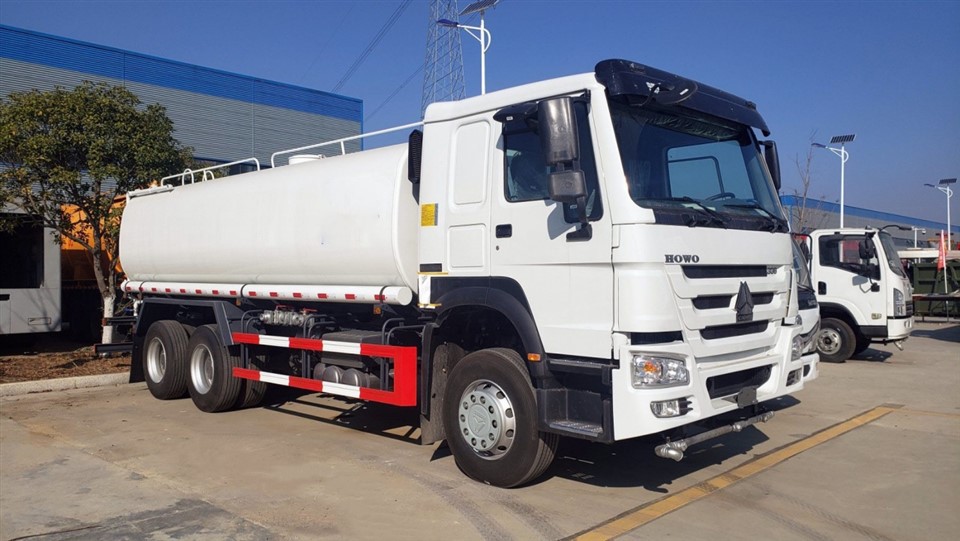

The HOWO 25,000-liter water tanker, produced by CSCTRUCK, is a robust and reliable solution for large-scale water transportation and distribution needs. Built on the HOWO chassis, this tanker is engineered with a 6×4 drive type, providing enhanced traction and stability for diverse terrains. It is powered by a WEICHAI WP10.380E22 engine that delivers an impressive 380 horsepower and meets Euro 2 emission standards, ensuring powerful yet efficient performance.
The water tanker features a stainless steel (SS304) water tank with a capacity of 25,000 liters, offering durability, corrosion resistance, and safety for water storage. It boasts a maximum payload of 25,000 kilograms, making it ideal for heavy-duty applications such as firefighting, construction, and municipal water supply.
Equipped with the high-performance 80QZ-40/42 water pump, the tanker provides a flow rate of 40m³/h, ensuring efficient water delivery for a variety of tasks. This capability is essential for operations requiring rapid and consistent water discharge, such as dust suppression or emergency response.
The HOWO 25,000L water tanker combines rugged construction, powerful performance, and practical features. It is designed to meet the demands of challenging environments, offering reliability and efficiency for professionals in industries where water transport is critical.
FEATURES
1. Large Water Tank Capacity
The tanker boasts a 25,000-liter SS304 stainless steel water tank, ensuring durability and resistance to corrosion.
2. High-Performance Engine
Powered by the WEICHAI WP10.380E22 engine delivering 380HP with a Euro 2 emission standard, offering robust performance and reliability.
3. Efficient Pump System
Equipped with an 80QZ-40/42 pump, providing a flow rate of 40 m³/h for fast and efficient water transfer.
4. Heavy-Duty Chassis and Drive Type
Built on a HOWO chassis with a 6×4 drive type, ensuring excellent stability, load handling, and adaptability to various terrains.
5. Impressive Payload Capacity
Designed to handle a maximum payload of 25,000kg, making it suitable for large-scale water transportation needs.
SPECIFICATION
|
PARTS |
ITEM |
DESCRIPTION |
|
General Information
|
Make & Model |
CSCTRUCK / WT25ZZ380L2 |
|
1.2 General |
Brand new(2024), unused. |
|
|
1.3 Steering |
Left-hand drive |
|
|
1.4 Body Volume |
25,000L |
|
|
1.5 Make of Truck |
HOWO |
|
|
1.6 Drive Model |
6×4 |
|
|
Engine |
2.1 Make / Model |
WEICHAI/WP10.380E22 |
|
2.2 Type |
Diesel, 6-cylinder, water-cooled, direct injection, and turbo-charged. |
|
|
2.3 HP |
380HP/1,600N·m |
|
|
2.4 Displacement |
9.726L |
|
|
2.5 Emission Standard |
Euro 2 |
|
|
2.6 Fuel Tank |
400L/Aluminum alloy |
|
|
Gearbox
|
3.1 General |
Manually operated gearbox |
|
3.2 Make / Model |
HOWO/HW19710 |
|
|
3.3 Forward & Reverse |
10F+2R |
|
|
3.4 Maximum Torque: |
1,900N·m |
|
|
Axles
|
4.1 Front Axle Loading |
7.5Tons/VGD95 |
|
4.2 Rear Axle loading |
16Tons × 2/MCX16ZG |
|
|
Wheels & Tires |
5.1 Specs. Of Tires |
12.00R22.5 |
|
Weight and Performance
|
6.1 Gross Vehicle Weight |
36,680kg |
|
6.2 Curb Weight |
11,680kg(approx.) |
|
|
6.3 Payload |
25,000kg |
|
|
Major Dimension |
7.1 Overall Dimension (L x W x H) |
10,160×2,500×3,390(mm)(approx.) |
|
CAB
|
8.1 General |
HW76 series/Sleeper cab/White color/Flat roof |
|
8.2 Air Conditioner |
Installed |
|
|
Tank |
9.1 Tank Loading Capacity |
25,000L |
|
9.2 Material |
SS304 The tank and pipe parts are made of 304 stainless steel, and the rest are made of carbon steel. |
|
|
9.3 Tank thickness |
5mm |
|
|
9.4 Outer surface |
Spray painting |
|
|
9.5 Manhole |
Installed |
|
|
9.6 Anti-wave board |
Installed |
|
|
Catwalk and ladder |
10.1 Model |
Walkway on the top of the tanker |
|
Tools Box |
11 |
Installed |
|
Pump |
12.1 Make |
80QZ-40/42 |
|
12.2 Type: |
Can be pumped in and out Pump casing: Cast iron Pump core: Stainless steel |
|
|
12.3 Flow rate |
40 m³/h |
|
|
12.4 Lift |
42 m |
|
|
12.5 Input shaft speed |
1,450-1,100 r/min |
|
|
12.6 Shaft power |
8.5kW |
|
|
12.7 Self-priming height |
6.5m |
|
|
12.8 Self-priming time |
1.5min/5m |
|
|
Painting |
13.1 General |
CSCTRUCK standard Top 1. Painting Color & LOGO on requirement. |
