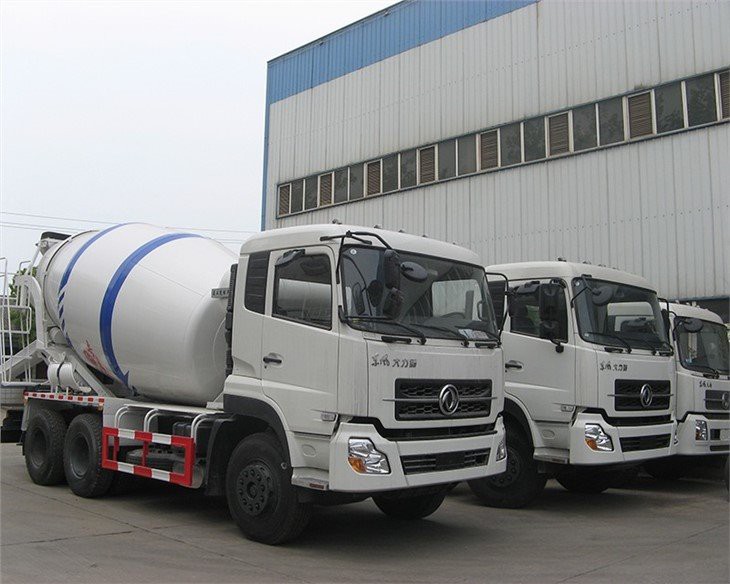

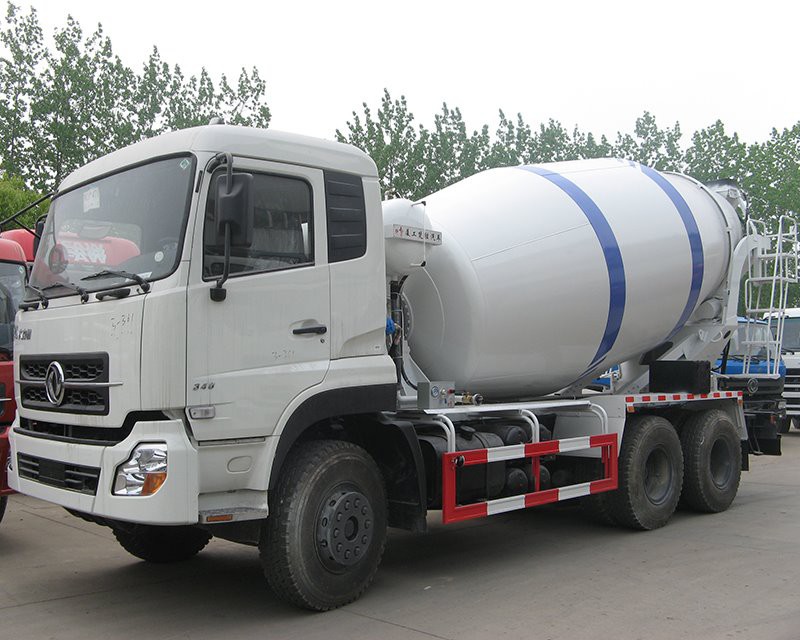

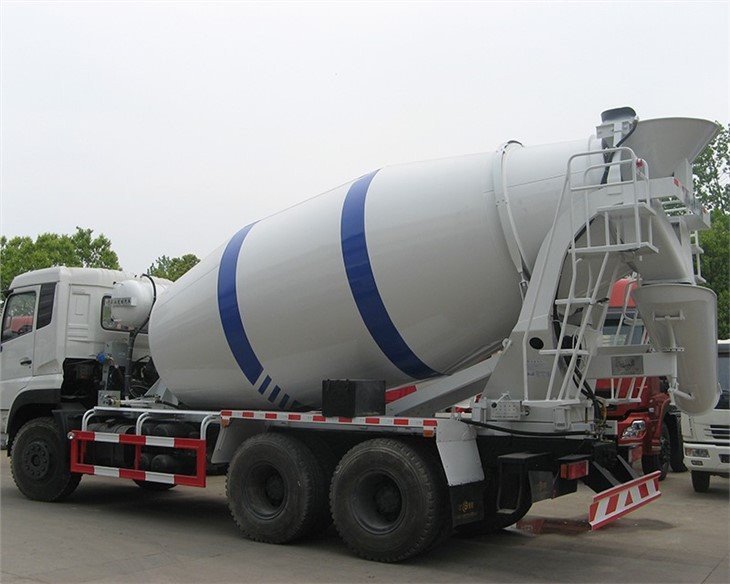

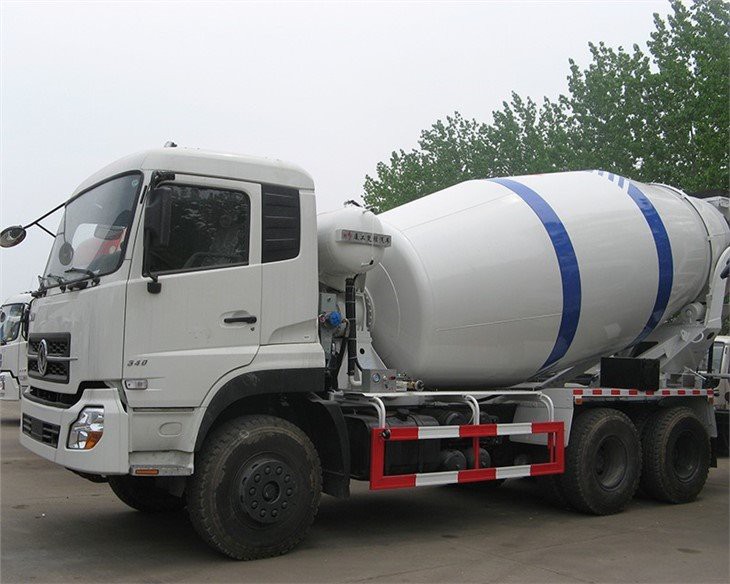

6×4 RHD Mixer Truck Chassis
Engine 240hp EURO 3
Mixing Drum Capacity 8CBM
Sauer Hydraulic pump
Sauer Hydraulic Motor
Reducer TOPP75S
 |
 |
 |
 |
Description
Hydraulic motor
Made: Sauer
Model: T90M75
Max.ouput torque: 1.19N.m/bar
Max.working pressure :420bar，
Max. Rotation speed :3950rpm
Displacement: 75cc/R
Reducer
TOPP75S
Intercooler
Chinese brand, 18L
Water tank capacity
450L
charge speed
≥8 cubic meter / min
Discharge speed
5 cubic meter / min
Setting angle
14.2°
Slump concrete
20mm
Blade fan
Material:T510 Φ4
Remaining rate
≤0.3
Filling rate
51.6%
