Medium Wrecker Tow Truck Lifting 30 Ton

30Ton Boom Retracted Capacity
Boom Max Lift Height 5.5m
12Ton Underlift Retracted Capacity
25Ton Underlift Towing Capacity
2x10Ton Winch capacity

Underlift

–         Retracted capacity on forks  11.3 ton (25,000 lbs) / * 9.5 ton (21,000 lbs)

–         Retracted distance to the forks  2135 mm (84”) / * 1701 mm (67”)

–         Extended capacity on forks  6.8 ton (15,000 lbs) / * 5 ton (11,000 lbs)

–         Extended distance to the forks  3773 mm (149”) / * 3657 mm (144”)

–         Negative tilt angle  -13°

–         Tow Rating  25 ton (55,000 lbs)

Boom

–         Retracted capacity (at 41°)  30 ton (66,100 lbs)

–         Extended capacity (at 41°)  15 ton (33,000 lbs)

–         Maximum Lift angle  41°

–         Maximum Hook Height  5117 mm (217”)

–         Reach Past Tailboard  1853 mm (73”)

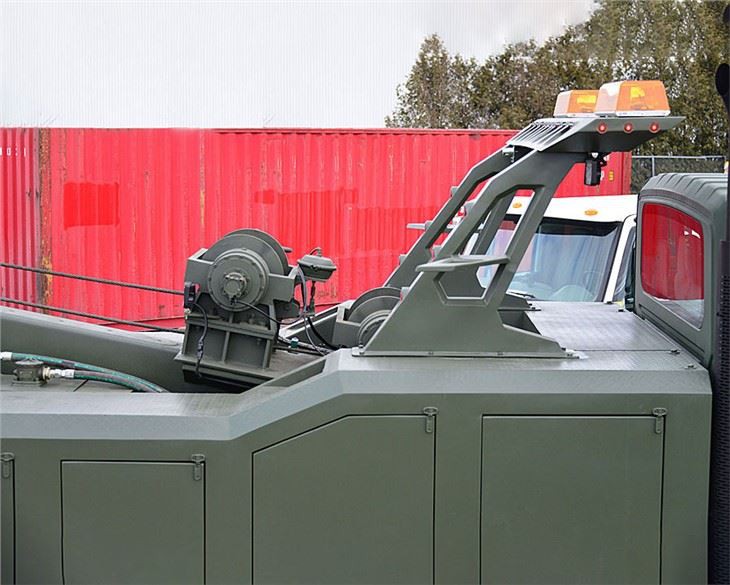

Winch

–         Quantity  2 pcs

–         Pulling force (on 1st layer)  10 ton (22,000 lbs)

–         Winch type  Planetary

–         Cable length  19 mm x 60 m (3/4″ x 200′)

Vehicle Recommendations

–         Front axle(s) weight (min)  5.4 ton (12,000 lbs)

–         Rear axle(s) weight (min)  Single 10.4 ton (23,000 lbs) or Tandem 2 x 9 ton (2 x 20,000 lbs)

–         Reccomended GVW  15 ton (33,000 lbs)

–         Reccomended Tire size  R22,5

–         Clear CA  3489 mm (137”)

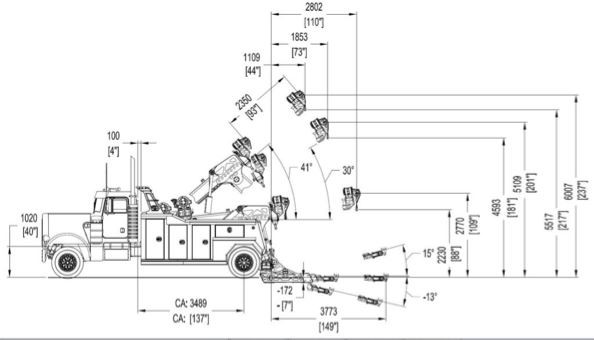

Line Drawing

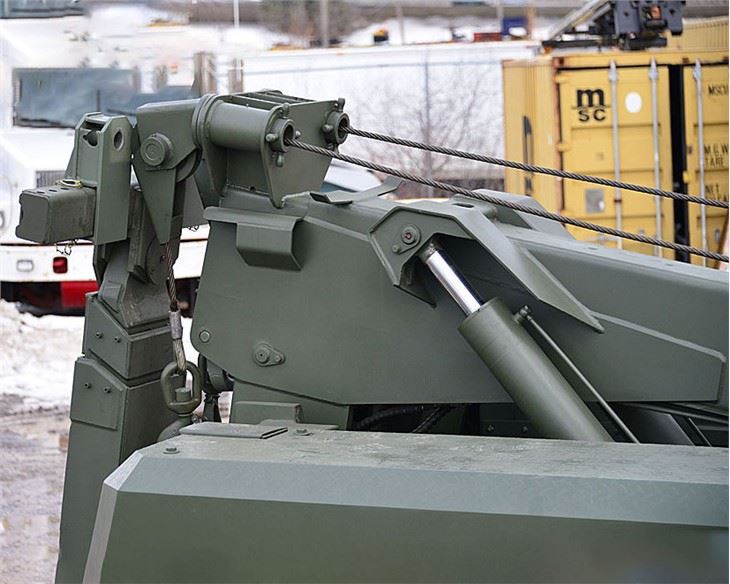

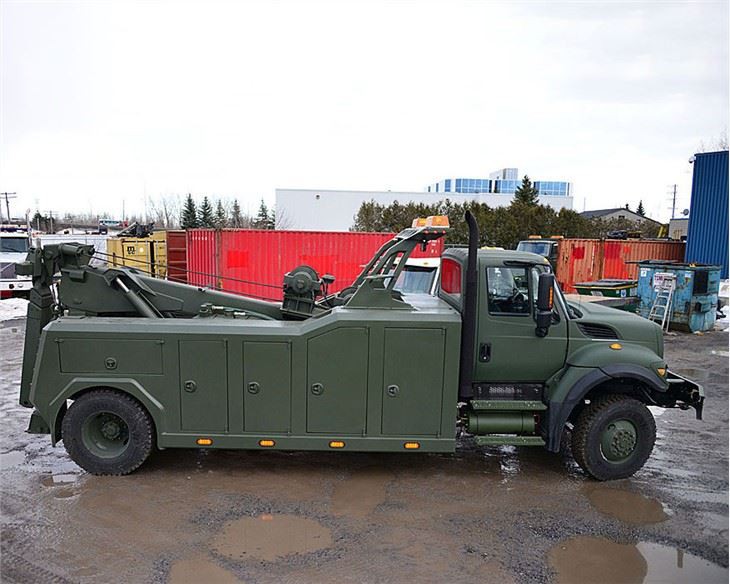

INT30 Unit Reference Photo not including chassis truck
