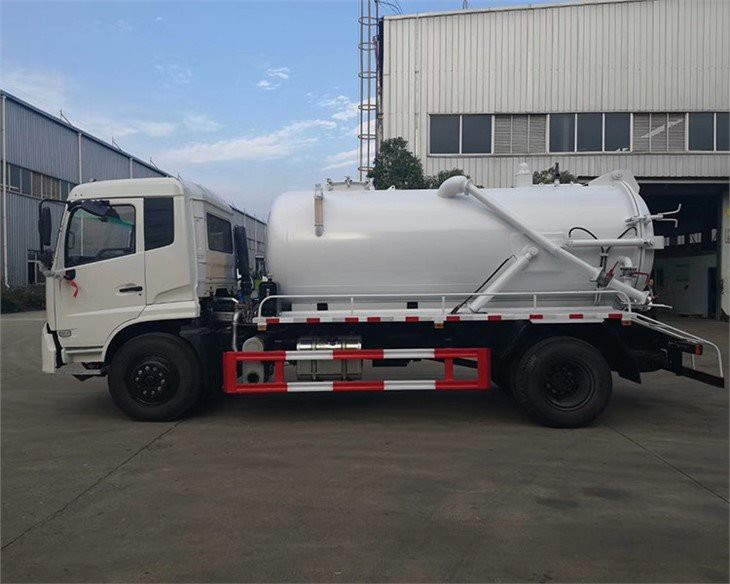

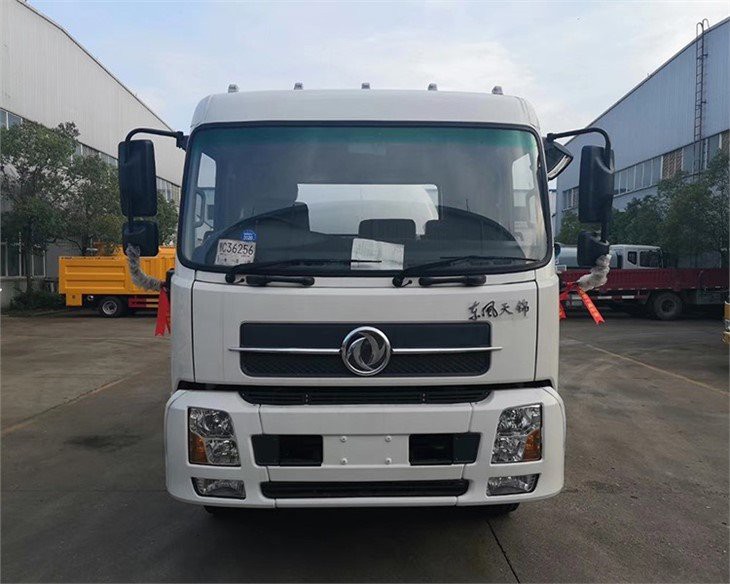

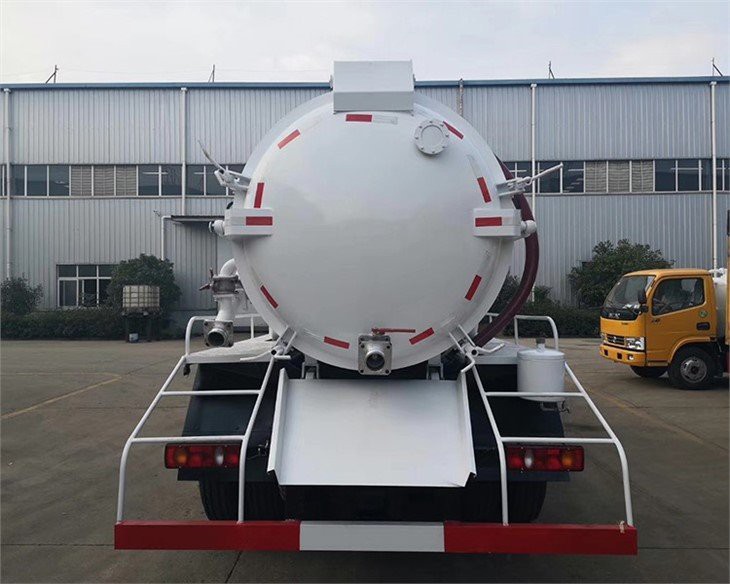

Model CSC5182GXWD6
Tank Capacity 10 m3
Wheel Drive 4×2
Description
Safety devices for overflow protection of the vacuum pump:
1, Primary shut-off valve
2, Secondary shut-off valve
3, Air safety filter,
4, Vacuum relief valve
5, Pressure relief valve
6, Vacuum pressure gauge
7, Silencer (Oil catch muffler)
| 4) SUCTION HOSE |
Material |
PVC along with quick connect coupling |
| Type |
Non-collapsible flexible |
| Diameter |
Internal 75mm |
| Length |
10 meter length with standard fitting & couplings shall be provided with the unit |
| Hose Tray |
Two hose trays each one in left and right, made of galvanized steel, Lockable storage compartments for hoses and other equipment along both sides of the tank |
| 5) COLOR |
to be confirmed during the contract agreement. |
| 6) INSTRUMENTATION |
Temperature Gauge |
Manufacturer standard Provided |
| Pressure Gauge |
Manufacturer standard Provided |
| Level Control |
Manufacturer standard Provided |
| 7) WATER TANK |
Capacity |
25L |
| Material |
plastic with soap dispenser |
| Purpose/Application |
for hand cleaning |
